The blinkenlights panel connects to the computer at the parallel port.
It shows status of the system: power, network, recording, gps fix.
It allows triggering of media recording, setting waypoints and
selecting an icon representing a keyword.
Control panel layout
The layout of controls and indicators can be seen in the picture below,
available also as an
SVG file.
Pinout on the LPT port
1 - input, buttonpressed
2 - output, resetbutton
3 - output, LED INET 1
4 - output, LED INET 2
5 - output, LED REC
6 - output, LED GPS
11 - input, SW1 bit 1
12 - input, SW1 bit 2
13 - input, SW2 bit 1
14 - input, SW2 bit 2
15 - input, SW2 bit 4

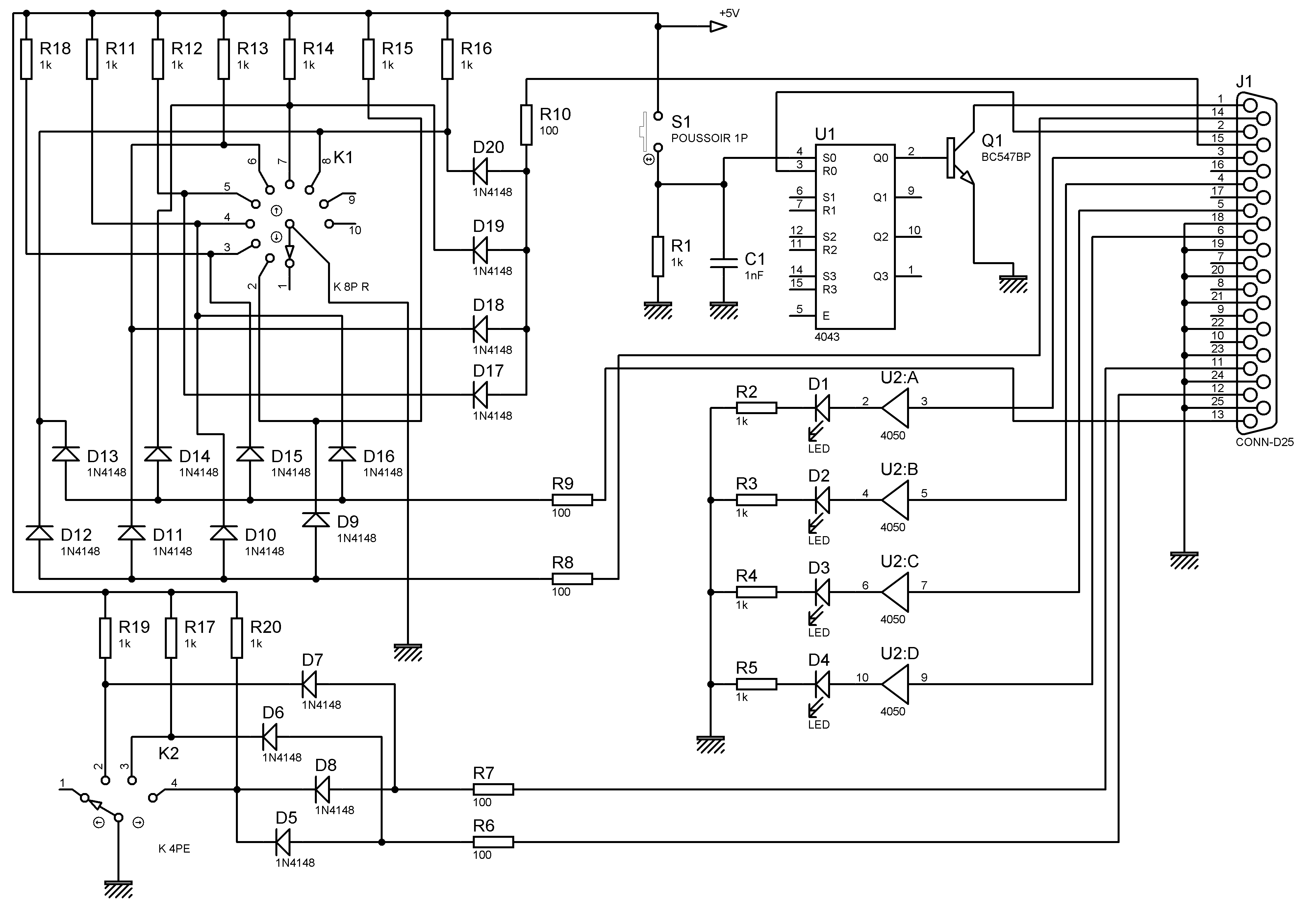

Control panel schematic
there is also a
bigger version suitable for printing
